Rapid Deployment
Designed for fast setup where time matters, from mobile ground control stations to field-ready command environments.
Mission Computing Platform
A field-ready portable hardware platform for solution providers who need to turn software capability into deployable mission systems.
For solution providers
DuraPAC is positioned for solution providers, defense integrators and mission system teams that need rugged hardware as a key component inside larger command, control, simulation, anti-drone or geospatial solutions. Rather than emphasizing components first, the platform is presented around deployment speed, operator visibility, field reliability and configuration flexibility.
Designed for fast setup where time matters, from mobile ground control stations to field-ready command environments.
Computing, display, expansion and operator interface are integrated into one transportable platform to reduce setup complexity.
Single or multi-display configurations help operators monitor software, sensors, maps and mission data in one compact workspace.
Built for mobile and harsh operating environments while remaining practical to transport, deploy and maintain.
Hardware configuration can be adapted around the solution provider's software stack, I/O needs and operator workflow.
A proven rugged platform approach from a manufacturer supporting military and prime contractor requirements for decades.
Mission scenarios
The goal is to support the solution provider's operational workflow, not to sell a generic PC. Technical specifications remain available for engineering review.
Portable command workstations for field operations, mobile command posts and distributed mission environments.
Multi-screen visibility for sensor feeds, control software, mapping, detection and response workflows.
Transportable compute and display platforms for simulation, rehearsal and mobile training scenarios.
A rugged operator platform for mapping, analysis and field-deployable mission data applications.
Case studies

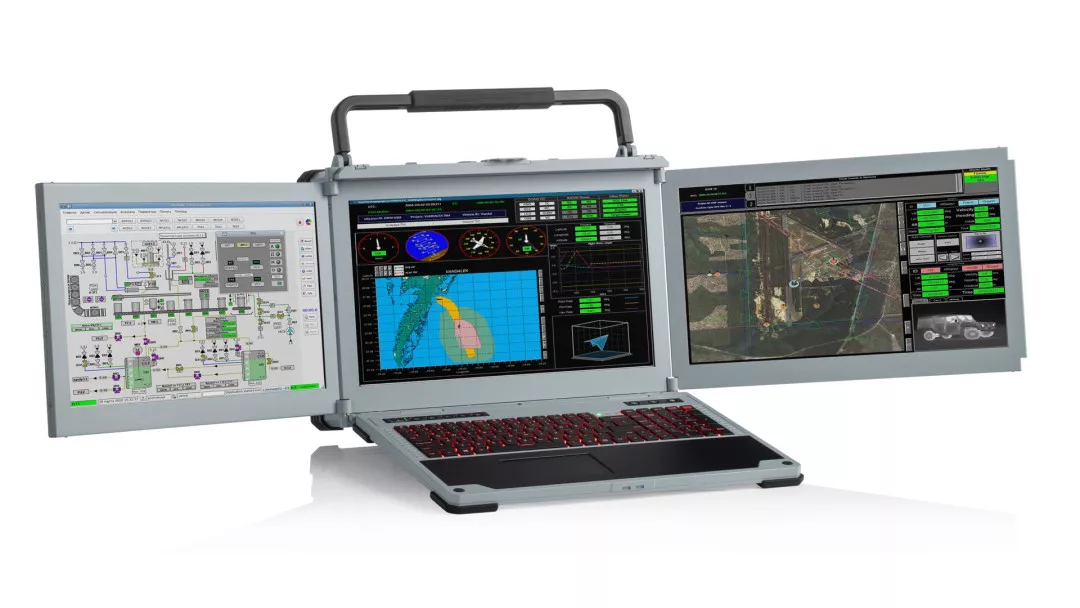

The NotePAC III ProV keeps the powerful performance and integrity of our portable computers while adopting a unique and different design. It utilizes a more notebook-style form factor for a very compact yet versatile design.
This fully rugged, aluminum laptop was built for the military to withstand harsh environments. The NotePAC III ProV meets MIL-STD-810H, MIL-STD-901E, MIL-STD-167-1A, and MIL-STD 461F standards.
The NotePAC III Pro V has plenty of expansion space for removable drives and PCIe expansions. Configurable options include 2x 3/4 length PCIe Slots (x16, x8) for add-in graphics, RAID, Network, or other I/O.
| Product | NotePAC III Pro V |
|---|---|
| Display | 3x 17.3" FHD 1920x1080 |
| CPU | Intel® Xeon® D-2183IT |
| Memory | 32GB DDR5 RAM, |
| Graphics Card | ASPEED AST2500 |
| OS Drive | 1TB M.2 NVMe, |
| Storage | 4 standard removable 2.5" slots for up to 8TB each |
| Ports | Quad LAN with Intel® Ethernet Controller I350-AM4, 3x HDMI external clone |
| Battery | 6x 10.8V, 9200MAH, 99WH |
| Optional Addons | 6x 10.8V, 7,500mAh, 81Wh Batteries |
| Input | 19VDC/31.6A |
| Output | 19VDC |

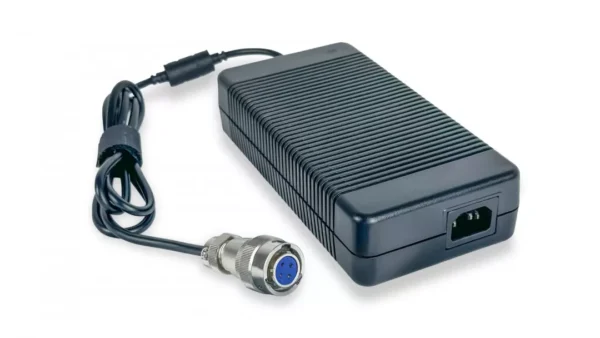

| Charger Specs | Charging voltage: 19V ± 1V, |
| Dimensions | Chassis dimensions: Battery dimensions: |
| Weight | 30.9bs (14kg) without batteries |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |

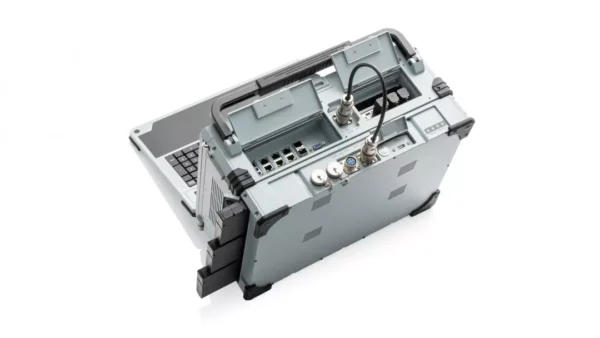

NotePAC III Pro V rugged portable computer for mission-critical mobile computing and field-ready workflows.
NotePAC III Pro V rugged portable computer for mission-critical mobile computing and field-ready workflows. ACME configures this hardware platform around the customer software workflow, deployment environment and long-term availability requirements. Request a configuration to match display, expansion, storage, connectivity and ruggedization needs.
| Product | NotePAC III Pro V |
| Display | 3x 17.3" FHD 1920x1080 |
| CPU | Intel® Xeon® D-2183IT |
| Memory | 32GB DDR5 RAM, upgradable to 512GB+ |
| Graphics Card | ASPEED AST2500 |
| OS Drive | 1TB M.2 NVMe, upgradable to 4 TB NVMe |
| Storage | 4 standard removable 2.5" slots for up to 8TB each |
| Ports | Quad LAN with Intel® Ethernet Controller I350-AM4, Dual LAN with 10G SFP+ LAN via SoC, Dual LAN with 10Gbase-T, 3x HDMI external clone |
| Battery | 6x 10.8V, 9200MAH, 99WH |
| Optional Addons | 6x 10.8V, 7,500mAh, 81Wh Batteries |
| Input | 19VDC/31.6A |
| Output | 19VDC |
| Charger Specs | Charging voltage: 19V ± 1V, Charging current: 13A ± 0.5A |
| Dimensions | Chassis dimensions: Height: 13.7" (347mm) Width: 17.42" (442.5mm) Depth: 7.72" (196mm) Battery dimensions: Height: 12.67" (322mm) Width: 17.04" (433mm) Depth: 2.71" (69mm) |
| Weight | 30.9bs (14kg) without batteries Optional battery pack: Additional 6.6lbs (3kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
The NotePAC III ProV keeps the powerful performance and integrity of our portable computers while adopting a unique and different design. It utilizes a more notebook-style form factor for a very compact yet versatile design.
This fully rugged, aluminum laptop was built for the military to withstand harsh environments. The NotePAC III ProV meets MIL-STD-810H, MIL-STD-901E, MIL-STD-167-1A, and MIL-STD 461F standards.
The NotePAC III Pro V has plenty of expansion space for removable drives and PCIe expansions. Configurable options include 2x 3/4 length PCIe Slots (x16, x8) for add-in graphics, RAID, Network, or other I/O.
Talk to our specialists about rugged portable solutions tailored to your operational environment.
